Why NEMA 14-50 Outlets Melt with EV Chargers (And How to Prevent It)

By Marcus Chen Published July 2026 Read 8 min read Topic Level 2 Charging

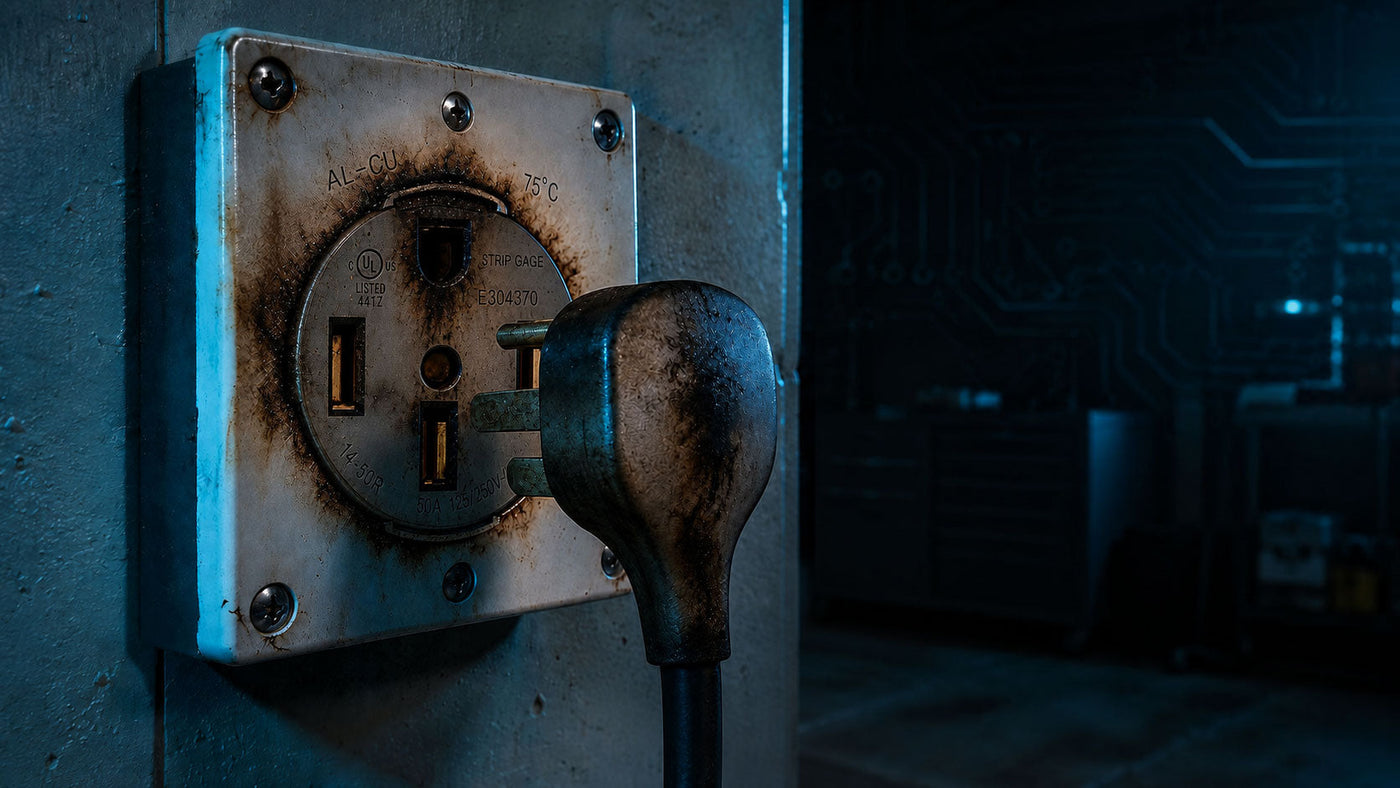

Melted NEMA 14-50 outlet with heavy EV charger showing thermal failure signs

By Marcus Chen — WenStorm

Someone on r/electricvehicles just got quoted $700 to install a NEMA 14-50 outlet in their garage. The top comment: "That's fair — but only if they're using a Hubbell receptacle. If they're using an $8 residential one, you're paying $700 for a fire risk."

That comment is closer to the truth than most YouTube tutorials on this subject.

A NEMA 14-50 outlet is the go-to solution for home Level 2 charging. It's cheap enough to install, delivers 40 amps continuous, and works with almost every portable charger on the market. When it fails — and it does fail — the reason isn't usually what people think.

Below: what actually causes NEMA 14-50 outlets to fail under EV charging, the two failure modes nobody separates cleanly, and the one spec on your charger that matters more than the amperage — and that no manufacturer will show you.

What NEMA 14-50 Actually Is (And Why EV Chargers Push It to the Limit)

NEMA 14-50 outlet pin diagram showing 40A continuous EV charger rating

A NEMA 14-50 is a 250-volt, 50-amp four-prong receptacle. Two hots, one neutral, one ground. It was designed for electric ranges and dryers — appliances that draw big current in short bursts.

EV charging is different. Under NEC 625.42, continuous loads (three hours or more) must be limited to 80% of the circuit rating. A 50-amp circuit gets you 40 amps continuous. Most portable Level 2 chargers pull the full 40.

The math works on paper. The failure happens in the receptacle body — where the physical contacts, the wire terminals, and the plug meet.

The Two Failure Modes: Thermal vs Mechanical

Wall-end vs car-end EV charger weight distribution comparison

Almost every discussion of NEMA 14-50 failure treats it as one problem: "outlet gets hot, outlet melts." That's two problems glued together, and they have different root causes.

Thermal Failure — Loose Terminals and Cheap Contacts

A residential-grade NEMA 14-50 uses steel contacts with back-stab connections. Back-stab means you push the wire into a spring-loaded terminal instead of tightening it under a screw. It's fast for the electrician. It also works loose over years of thermal cycling.

When the connection loosens, resistance goes up. Resistance under 40 amps continuous means heat. Heat softens the plastic around the terminal. The contact loses tension. Resistance goes up more. This is the runaway loop that ends with a discolored, buzzing outlet.

Industrial-grade receptacles solve this two ways:

  • Brass contacts instead of steel (brass has better conductivity and holds pressure)
  • Screw terminals with real torque spec (usually 35 in-lb) instead of back-stab

The best-known industrial parts: Hubbell HBL9450A, Bryant 9450FR, Leviton 279-S00. They cost $50–$70 versus $8 for a hardware-store residential unit. On a circuit that will run 4-8 hours a night for years, that price difference pays for itself the first time you check the receptacle body and it isn't warm.

Mechanical Failure — The Lever-Arm Problem Nobody Talks About

Here's what the manufacturer won't tell you. Look at a typical portable Level 2 charger. Most brands mount a visible control box — a "brick" — directly on or near the NEMA plug. The electronics live at the outlet end. You can verify this in about ten seconds on any product photo. What's harder to see, unless you go dig up the datasheet, is how much that brick actually weighs.

Published weights from manufacturer spec sheets:

Not all of that weight rests on the receptacle in every design, but on any charger where the control box sits directly on the NEMA plug, the plug is bearing the majority of it — continuously, night after night, for years.

That mass applies constant downward force on the receptacle body. Over months, the plug shifts a few millimeters. The internal contacts no longer sit centered on the plug blades. Contact area shrinks. Localized resistance goes up in the spots where the plug now touches at an angle. Heat concentrates.

You now have thermal failure caused by mechanical failure. The outlet degrades. The plug degrades. The homeowner blames the "cheap outlet" or "the electrician." The real cause was a charger design that put its electronics — and their weight — on a receptacle originally designed for a dryer plug, which plugs in once and never moves.

Tesla owners on TMC have been reverse-engineering this failure for over a decade. From a Tesla Motors Club owner analyzing his own melted receptacle: "the meltdown was due to increased resistance brought on by lateral force being applied to the plug, which loosened the contact force of the receptacle contacts, with the plug pulled about 1/8th inch out of the receptacle."

That's the mechanism, stated by an owner who took his failed 14-50 apart. Same forum, different thread, another owner names the actual weight: "The cable is about 6 lbs with the 14-50 adapter attached," from the canonical Mobile Connector Weight thread. Six pounds hanging on two metal blades held in place only by receptacle spring tension.

The community's workaround is a bracket. Tesla themselves sell one. Any "how are you hanging your UMC?" thread turns into a photo gallery of custom mounts and hooks — an entire cottage industry built around a design decision that put a six-pound brick on the outlet end of a portable charger.

Weight distribution isn't in any spec sheet. It should be.

The Industrial-Grade Receptacle That Actually Handles EV Duty

If you're specifying a new install, three receptacles are worth paying up for:

Hubbell HBL9450A — Brass contacts, screw terminals, 35 in-lb torque spec. Built for commercial dryer plugs and industrial welders. This is the one most professional EV installers now default to.

Bryant 9450FR — Similar internals, slightly cheaper. Same brass-and-screw design.

Leviton 279-S00 — Commercial-grade, screw terminals only, no back-stab option. About $45. The most common upgrade over a residential unit.

Skip anything sold as "Level 2 EV outlet" for under $20. That's a residential receptacle in different packaging.

The install detail that matters most: torque the neutral and ground terminals to spec, not by feel. A calibrated torque screwdriver is $60. Your electrician should own one. If they don't bring it to the job, you're paying for the outlet to loosen in two years.

What the Regulator Record Actually Shows

The most important thing to know: federal safety regulators have never recalled the NEMA 14-50 receptacle itself. When people cite "Tesla's adapter recall," they're usually thinking of NHTSA campaign 16E-091, which pulled 6,729 Tesla mobile connector adapters manufactured between August 2012 and December 2013. The recalled adapters were 14-30, 10-30, and 6-50. NEMA 14-50 was explicitly excluded.

What's more informative than the recall itself is Tesla's stated defect language. From the NHTSA filing: "The affected adapters may have insufficient welds within the cable which can result in increased electrical resistance. Increased electrical resistance may cause overheating or arcing, increasing the risk of a fire." (Source: NHTSA 16E-091 recall report.) The full chain is right there: extra resistance → heat → arcing → fire. Two customer reports were enough to trigger the recall.

Seven years later, that exact language reappeared in a much larger recall — this time not about adapters, but about the receptacle interface itself.

In December 2023, Porsche and Audi jointly recalled more than 134,000 vehicles (NHTSA campaigns 23V-841 and 23V-842) because their supplied portable Level 2 charging cables could overheat at the wall-outlet interface. Porsche's NHTSA filing states the defect precisely: "In certain instances, the charging cables can become hot during charging when plugged into certain types of lower quality electrical receptacles due to elevated electrical resistance at the receptacle interface. Increased resistance in the charging cable can increase the risk of overheating and thermal damage to the electrical receptacle and the surrounding area."

Porsche's remedy: replacement cables with a temperature sensor built into the NEMA plug.

That is a regulator-blessed admission of exactly what this article has been arguing. The plug-receptacle interface is where thermal risk concentrates on any portable EVSE, the failure gets worse in cheaper receptacles, and the fix Porsche shipped 134,000 times is to put a temperature sensor at the interface itself — because that's where the heat lives.

The three biggest federal recalls in home-charging history — Tesla 2016, Porsche 2023, Audi 2023 — all describe the same root cause: increased resistance at the plug interface, cascading to overheating, thermal damage, and fire. Weight isn't named in the NHTSA filings; the physics of what accelerates that resistance rise (load-cycling, plug wear, contact fatigue from anything pulling on the plug) is what the forum posts above have been diagnosing for a decade.

What Owners Actually See (And Why the Diagnosis Usually Misses)

If you spend an hour reading r/electricvehicles, r/evcharging, and TMC threads about melted 14-50 outlets, a pattern jumps out. The failure descriptions are identical. The blame is almost never the same.

From a canonical 440-upvote r/electricvehicles thread: "Our $15 Leviton 14-50 from Home Depot melted after 4 years on our 40A line." OP's conclusion: use a commercial-grade outlet. No mention of the charger's weight.

From r/AskElectricians "Outlet Overheating" (Tesla charger, 40A breaker): "When I disconnected it sometimes, the handle was getting really hot… it was all melted." OP's conclusion: bad install. No mention of the charger's design.

From r/evcharging (Grizzl-E Classic): "NEMA 14-50 outlet melting and damaging the input plug." The owner had to retire the entire charger because the outlet melt cooked the plug on the EVSE. OP's conclusion: bad outlet. No mention of the brick hanging off it.

Across dozens of these threads, the mechanism is described accurately — melted plugs, loose receptacles, chargers throwing "loose connection" errors, handles that get too hot to touch. What owners consistently miss is that a heavy control box hanging on the plug is what starts the loosening in the first place. The outlet is the victim, not the perp.

This matters because if you follow the popular advice — hardwire, or upgrade to a Hubbell — but keep using a charger that puts its electronics on the plug, you've solved half the problem. The industrial receptacle will last longer. It won't last forever. Nothing designed to be a stationary anchor point can withstand years of nightly load-cycling with a five-to-twenty-pound brick pendulum-swinging off it.

Signs Your NEMA 14-50 Is About to Fail

You almost never get a sudden failure. You get warning signs and ignore them:

  • Discoloration around the plug or receptacle face — brown, tan, or yellow tint. That's polymer degradation from heat. It doesn't reverse.
  • Faint buzzing or humming when charging — a loose contact vibrating.
  • The plug body feels warm to the touch after 30 minutes of charging. Warm is bad. Hot is dangerous.
  • A tripped breaker mid-charge, especially if it happens intermittently — the breaker is protecting a downstream problem.
  • Anything that smells like burning plastic — stop charging, unplug, do not use the outlet again until it's inspected.

If you see any of these, don't wait. Replace the receptacle with an industrial-grade unit, verify torque, and check the wire condition where it enters the terminal.

The cost of ignoring the signs isn't theoretical. One Tesla owner on TMC had his Mobile Connector melt into the car's charging port — the charging port and internal cable required a $3,000+ Tesla Service repair. Then it happened a second and third time with the replacement cable, even after the NEMA outlet had been swapped. What made the outlet worth replacing was cheap. What made the failure worth catching early was $3,000.

Safe Installation Checklist (Print This)

Give this to your electrician if you're installing a NEMA 14-50 for EV charging:

  • Wire gauge: 6 AWG copper for runs under 100 feet at 50A. 4 AWG for longer runs or aluminum.
  • Breaker: 50A dedicated circuit. No shared loads.
  • 80% rule: Charger set to 40A max continuous per NEC 625.42.
  • GFCI: Required per NEC 210.8(A)(11) unless the charger is hardwired. Use a Class A GFCI breaker rated for EV loads — cheaper GFCIs nuisance-trip on EV inductance.
  • Torque: All terminals torqued to receptacle spec (Hubbell HBL9450A is 35 in-lb on the phase terminals, 25 in-lb on ground).
  • Height: Install the receptacle 18-24 inches from the floor. Lower than that catches garage water. Higher increases the mechanical lever arm on the plug.
  • Location: Straight-line access from where the charger will actually sit — not around a corner, not behind a shelf.

If any of those get skipped, you're already the person from the Reddit thread six months from now.

The Design Choice Nobody Talks About: Where the Electronics Live

WenStorm portable Level 2 EV charger with brick at car end

Go back to the mechanical failure section. The reason wall-end chargers strain the outlet is that the charger itself is heavy, and the manufacturer chose to hang that weight on the plug.

That's a design choice. It's not required.

WenStorm's portable Level 2 charger doesn't use a separate control box at all. The electronics — the relay, the control board, the temperature sensors — are integrated directly into the J1772 or NACS connector handle at the car end. There is no midline brick. There is no plug-mounted brick. The cable running out of your NEMA 14-50 receptacle is just cable.

Once the connector plugs into the car, the car's charging inlet supports the full weight of the smart handle. The wall receptacle sees only the pull of the cable itself.

This isn't a marketing angle. It's basic mechanical leverage. Any mass hanging on a plug applies torque on the receptacle body proportional to that mass times its distance from the wall. Move the electronics off the outlet end entirely and that torque approaches zero. Where a manufacturer chooses to put the electronics is a design decision — and it's the one design decision that most affects what happens to your wall outlet over five years of nightly charging.

The industrial-grade receptacles above will still fail faster with a wall-end charger than they should. They'll fail slower with a car-end charger. Combine an industrial receptacle with a car-end design and the outlet will outlast the car.

About That $700 Installation Quote

Back to the Reddit thread that started this article.

$700 to install a NEMA 14-50 is fair when:

  • The run from panel to receptacle is 30-60 feet
  • The panel has an open double-pole 50A slot (no subpanel needed)
  • The electrician is pulling a permit and doing final torque check
  • The receptacle they're installing is industrial-grade (not the $8 unit)
  • Your area has average electrician labor rates ($90-120/hr)

$700 is a gouge when:

  • The panel is 6 feet away and the run is trivial
  • They're installing a residential receptacle
  • No permit is being pulled
  • The electrician is skipping the GFCI breaker to save cost

$700 is a bargain when:

  • The panel needs a subpanel or upgrade to fit the new circuit
  • The run is over 100 feet or requires trenching
  • Aluminum wire is involved (adds material and inspection complexity)

If you're being quoted more than $1,500 and none of the "bargain" conditions apply, get a second quote. If you're being quoted under $400 and they can't tell you what receptacle brand they're using, get a different electrician.

Frequently Asked Questions

Can I use a residential NEMA 14-50 outlet for EV charging?

Technically yes, but residential-grade receptacles are consistently the weakest link when 14-50 outlets do fail under EV load. Residential units use back-stab terminals and steel contacts that can loosen under sustained 40A continuous draw. An industrial-grade receptacle (Hubbell HBL9450A, Bryant 9450FR, Leviton 279-S00) uses brass contacts and screw terminals, and is worth the $50 upgrade over the $8 residential part.

How much amperage does an EV charger need?

Most portable Level 2 chargers pull 32-40 amps continuous. NEC requires continuous loads be limited to 80% of the circuit rating, so a 50A circuit (like NEMA 14-50) supports 40A continuous, and a 40A circuit supports 32A continuous. Higher-amperage hardwired chargers exist (48A, 80A), but for portable Level 2 charging, 40A is the practical ceiling.

Why do EV charger outlets get hot?

Two reasons, usually combined. Thermal: loose or corroded terminal contacts create resistance, which turns 40 amps continuous into heat at the connection point. Mechanical: a heavy charger brick hanging on the plug shifts the internal contacts off-center, reducing contact area and concentrating heat where the plug now presses at an angle. Both are prevented by using an industrial-grade receptacle and a charger design that doesn't hang electronics on the wall — like WenStorm's, where the smart electronics live in the J1772/NACS connector and are supported by the car's inlet, not the outlet.

What's the difference between NEMA 14-50 and 6-50?

NEMA 14-50 is a four-prong outlet with two hots, neutral, and ground. NEMA 6-50 is three-prong with two hots and ground only — no neutral. For EV charging, both deliver the same 240V/40A continuous. NEMA 14-50 is more common because it's also the standard RV park outlet, so portable chargers ship with 14-50 plugs by default. Use 6-50 if your charger requires it or if you're specifically installing a welder-outlet-compatible circuit.

Do I need GFCI protection on my NEMA 14-50 EV circuit?

Yes, if the outlet is in a garage or outdoors, per NEC 210.8(A)(11). Use a Class A GFCI breaker at the panel — a GFCI receptacle is not rated for this load. Use a breaker specifically rated for EV loads (Siemens QF250A, Eaton BRN250, or similar); cheaper GFCIs nuisance-trip on the inductive load of EV chargers. Hardwired chargers exempt the outlet requirement but still require GFCI at the circuit level.

The NEMA 14-50 outlet is the workhorse of home EV charging. It fails when three things get skipped: the industrial receptacle, the torque check, and a charger that doesn't hang its own electronics on the plug. Fix all three and you'll never revisit this article.
