Tesla NEMA Adapter Guide: Which One Do You Need?
Your Tesla came with a mobile connector. Right now, plugged into a standard wall outlet, it's charging at about 12A — which adds roughly 3–5 miles of range per hour.
That same mobile connector can charge at 32A and add 30 miles per hour.
The difference is a NEMA adapter. Here's what each type does, which outlet it fits, and how to pick the right one for your home in under two minutes.

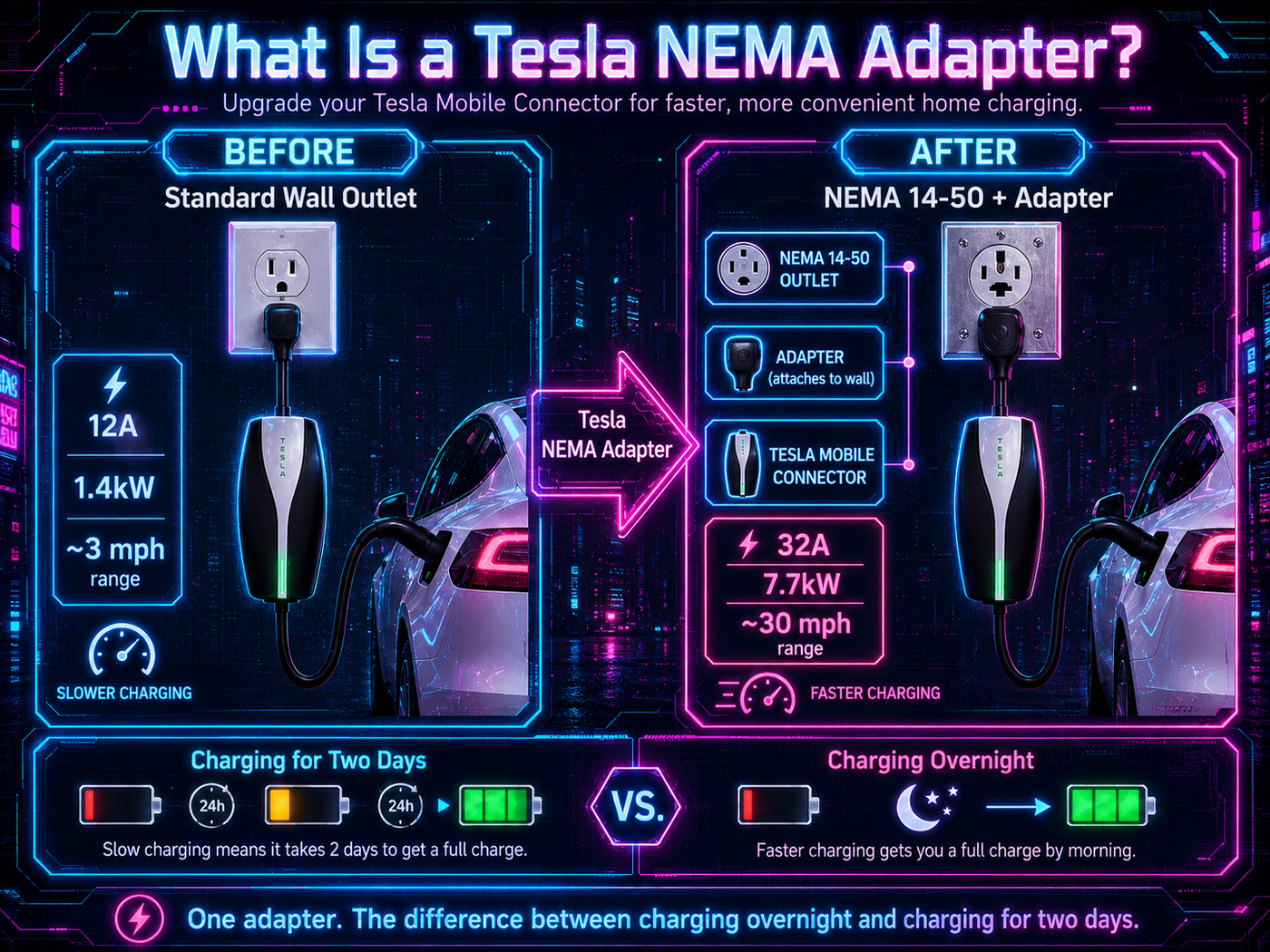

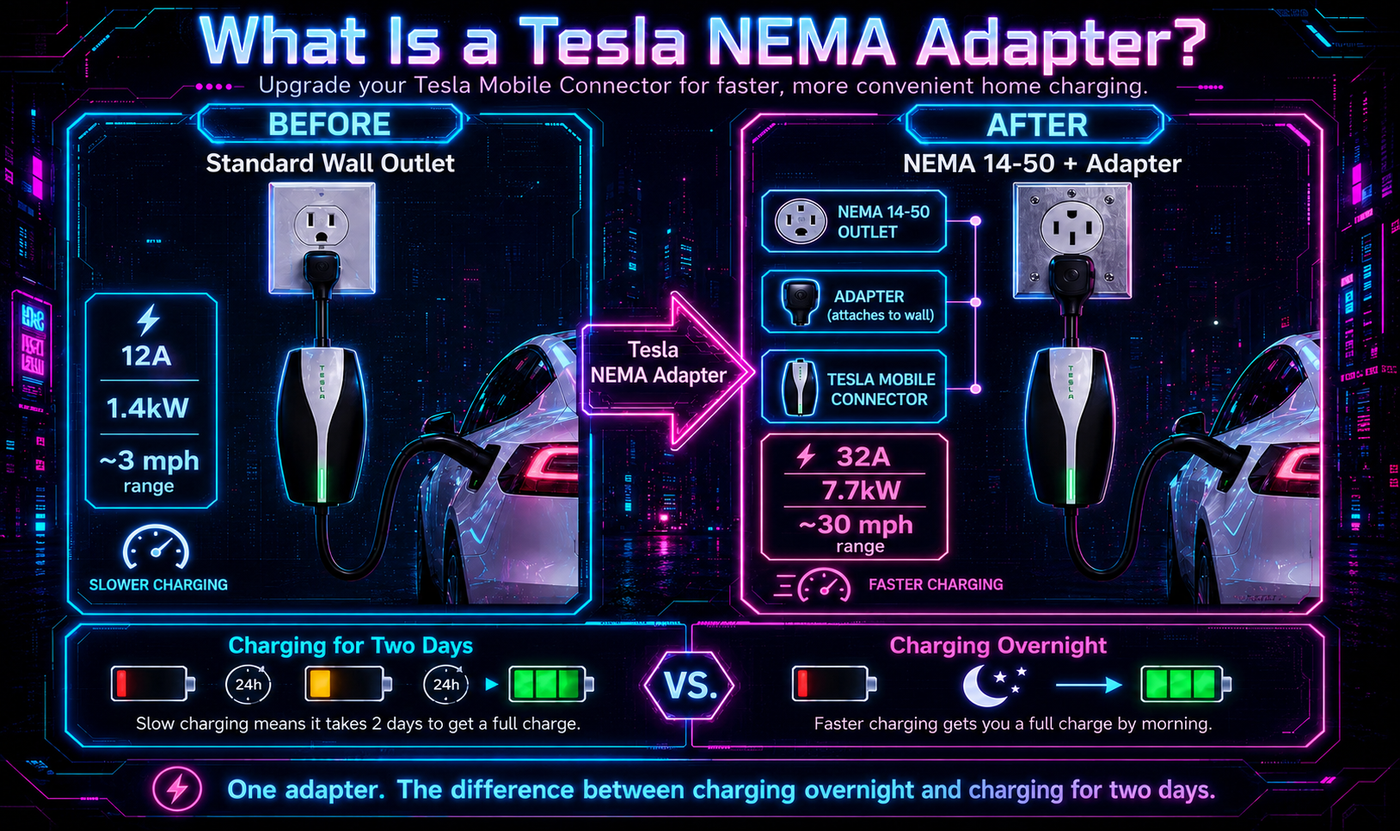

What Is a Tesla NEMA Adapter (and Why Do You Need One)?
The Tesla Gen 2 Mobile Connector ships with a standard 120V wall plug (NEMA 5-15). On that outlet, it draws 12A — enough for a slow overnight top-up, but not much else.
A Tesla NEMA adapter replaces that end, allowing the mobile connector to plug into a 240V outlet instead. At 240V with the right circuit, the same mobile connector now charges at up to 32A — more than double the kilowatts, and roughly 6–8x the miles per hour.
No new hardware. No electrician. Just the right adapter for the outlet you already have.
WenStorm makes adapters for all five common 240V outlet types found in US homes, garages, and RV parks — so whatever outlet is nearest your parking spot, there's an adapter for it.
Gen 2 vs Gen 3 Mobile Connector — Which Adapters Fit?
Tesla has shipped two generations of mobile connector with its vehicles.
Gen 2 Mobile Connector — shipped with most Tesla vehicles before 2022. Has a proprietary adapter port on the connector body. NEMA adapters plug directly into this port, swapping the outlet end in seconds.
Gen 3 Mobile Connector — ships with newer Tesla models. Slimmer design, slightly different adapter interface.
WenStorm NEMA adapters are designed exclusively for the Gen 2 Mobile Connector. Before ordering, confirm which connector came with your car. Gen 2 has a visible adapter slot on the side of the connector body. Gen 3 does not have this slot and is not compatible with WenStorm NEMA adapters.
All 5 Tesla NEMA Adapter Types — Complete Comparison
| Adapter | Outlet Type | Voltage | Max Current | Range Per Hour | Full Charge (75 kWh) |
|---|---|---|---|---|---|
| NEMA 14-50 | 4-prong, L-shaped hot | 240V | 32A | ~28–32 mph | ~7–8 hrs |
| NEMA 14-30 | 4-prong, straight | 240V | 24A | ~20–24 mph | ~9–10 hrs |
| NEMA 10-30 | 3-prong dryer | 240V | 24A | ~20–24 mph | ~9–10 hrs |
| NEMA 6-50 | 2-flat + round | 240V | 32A | ~28–32 mph | ~7–8 hrs |
| TT-30 | Small 3-prong RV | 120V | 24A | ~6–8 mph | ~25–30 hrs |
Actual speeds vary by Tesla model and onboard charger limit.
NEMA 14-50 Adapter — The Most Common Choice
The NEMA 14-50 is the standard EV charging outlet in the US. It's the same outlet used by most public Level 2 stations and RV hookups. If your home has a 240V circuit available — or you're considering having one added — this is the outlet to target.
On a NEMA 14-50, the Gen 2 mobile connector charges at up to 32A, adding 28–32 miles of range per hour. Most Tesla owners with a 14-50 wake up to a full battery every morning.
See WenStorm NEMA 14-50 Tesla Adapter →
NEMA 14-30 Adapter — Standard Dryer Outlet
The most common 240V outlet in apartments and homes. If you have an electric dryer, you almost certainly have a NEMA 14-30 nearby.
Four prongs (two hots, one neutral, one ground) — distinguishable from 10-30 by the extra prong. Charges at up to 24A: slower than a 14-50 but still plenty for overnight charging.
See WenStorm NEMA 14-30 Tesla Adapter →
NEMA 10-30 Adapter — Older Dryer Outlet (3-Prong)
Found in older homes and apartments, the NEMA 10-30 is a 3-prong dryer outlet (no separate ground wire). It delivers the same 24A charging speed as the 14-30 but has a different plug shape.
If your laundry room has a 3-prong dryer outlet instead of 4-prong, this is your adapter.
See WenStorm NEMA 10-30 Tesla Adapter →
NEMA 6-50 Adapter — Workshop / Welder Outlet
The NEMA 6-50 is a 2-flat-blade-plus-round-ground outlet rated at 50A, commonly found in garages with workshop equipment or welders. Less common than dryer outlets, but if you have one, it's ideal — same 32A charging speed as the 14-50.
See WenStorm NEMA 6-50 Tesla Adapter →
TT-30 Adapter — RV Park Outlet
The TT-30 is the standard outlet at RV parks and campgrounds. It's a 120V/30A connection — not true Level 2, but significantly faster than a standard wall outlet. Useful for road trips when you're staying somewhere without 240V access.
At 120V/24A, a TT-30 adds 6–8 miles per hour. Not a substitute for home charging, but a practical option for travel.
See WenStorm TT-30 Tesla Adapter →
How to Identify Your Outlet Type in 60 Seconds
You don't need an electrician to figure this out. Just look at the outlet and count the prongs.
Quick identification guide:
- 4 prongs, L-shaped top-left slot → NEMA 14-50
- 4 prongs, all straight slots → NEMA 14-30
- 3 prongs, one is L-shaped → NEMA 10-30
- 3 prongs, 2 flat + 1 round, larger size → NEMA 6-50
- 3 prongs, 2 flat + 1 round, smaller size → TT-30 (RV outlet)
Where to look in your home:
- Garage: often 14-50 (EV/RV hookup) or 6-50 (workshop)
- Laundry room: almost always 14-30 or 10-30
- RV park / campground: TT-30
If you're not sure, take a photo and compare to the diagram above. The outlet shape makes it unambiguous once you know what to look for.
Charging Speed by Adapter Type
Here's what to expect overnight, starting from 20% battery in a Model Y Long Range (82 kWh usable):
| Adapter | Plug In at 10pm | Wake Up at 7am |
|---|---|---|
| NEMA 14-50 or 6-50 | 20% (65 mi) | ~100% (full) |
| NEMA 14-30 or 10-30 | 20% (65 mi) | ~85–90% |
| TT-30 | 20% (65 mi) | ~35–45% |
| Standard wall (no adapter) | 20% (65 mi) | ~25–28% |
The 14-50 and 6-50 adapters deliver a full overnight charge for all current Tesla models. The dryer outlet adapters (14-30, 10-30) get most owners to full or near-full by morning. TT-30 is for travel, not daily home use.
WenStorm Tesla NEMA Adapters — Full Lineup
WenStorm makes all five NEMA adapter types for the Tesla Gen 2 Mobile Connector. Each adapter is:
- ETL certified — meets UL 2231 safety standards for EVSE accessories
- 32A or 24A rated — matches the outlet's circuit capacity
- Compact design — fits in your Tesla's charging bag alongside the mobile connector
- Compatible with Tesla Model 3, Model Y, Model S, Model X (Gen 2 Mobile Connector)
No bundle required. Order exactly the adapter type that matches your outlet.
Shop All WenStorm Tesla NEMA Adapters →
FAQ
How many amps is a Tesla NEMA 14-50 adapter?
The NEMA 14-50 adapter allows the Tesla Gen 2 Mobile Connector to charge at up to 32A on a 240V / 50A circuit. This is the maximum rate for the Gen 2 Mobile Connector, adding approximately 28–32 miles of range per hour.
Can you charge a Tesla with a NEMA 14-50?
Yes. The NEMA 14-50 is the most common home EV charging outlet. With a WenStorm NEMA 14-50 adapter on your Tesla mobile connector, you get the same charging speed as a dedicated Level 2 home charger — without the installation cost.
What is the difference between NEMA 14-30 and 10-30 for Tesla?
Both are dryer-style outlets rated at 30A / 240V and deliver the same charging speed (up to 24A). The difference is the plug shape: NEMA 14-30 has 4 prongs (adds a neutral wire); NEMA 10-30 has 3 prongs (older standard, no separate neutral). Match the adapter to the outlet shape in your laundry room.
Do Tesla NEMA adapters work with the Gen 3 Mobile Connector?
No. WenStorm NEMA adapters are compatible with the Gen 2 Mobile Connector only. The Gen 3 connector has a different interface and does not have the adapter slot required. If your Tesla came with a Gen 3 connector, WenStorm NEMA adapters will not fit.
Is charging from a dryer outlet safe for my Tesla?
Yes, when using a certified adapter rated for the circuit. The NEMA 14-30 and 10-30 adapters limit charging current to 24A — within the 30A circuit's safe operating range (80% of rated capacity per NEC guidelines). WenStorm adapters are ETL certified and include built-in current limiting to prevent overload.
How much faster is a NEMA adapter vs a standard wall outlet?
A standard 120V wall outlet (NEMA 5-15) delivers ~1.4kW at 12A — about 3–5 miles of range per hour. A NEMA 14-50 adapter on the same mobile connector delivers ~7.7kW at 32A — about 28–32 miles of range per hour. That's roughly 8x faster charging from the same mobile connector.
Find Your Outlet. Order the Right Adapter. Charge Faster Tonight.
Your Tesla's mobile connector is already capable of Level 2 charging. The only thing between you and a full battery every morning is the right NEMA adapter for your outlet.
Pick your outlet type from the guide above and order the matching adapter. Free shipping. In your hands in 2–3 days.
Shop WenStorm Tesla NEMA Adapters →
Not sure which outlet you have? Use the WenStorm Charging Solution Finder →
