EV Charger Cable Stiff in Cold Weather? Causes & Fixes

Nordic drivers figured this out a decade ago. If you've charged an EV at −15 °C (5 °F) or colder, you already know the sensation: the cable that was floppy in July won't lie flat in January. It holds an arc between the outlet and the car like a piece of copper pipe. You need both hands to coil it. You wrestle it into the trunk.

In cold, what actually happens to your charging cable isn't a mystery. It's a well-understood polymer physics problem — but almost every EV owner in North America experiences it as an annoyance rather than a mechanical warning sign. Below −10 °C, your cable stops being flexible and starts transmitting force. If your charger has a heavy control box hanging on the wall outlet, that force gets delivered directly into the plug.

The physics doesn't care about the marketing. Here's what's actually going on, and why it matters for your NEMA receptacle over the years you own the charger.

What Actually Happens to the Cable in Cold

The outer jacket of an EV charger cable is a polymer — usually PVC on cheaper cables, TPU (thermoplastic polyurethane) on better ones, and silicone on the most expensive. Every polymer has a glass-transition temperature (Tg), below which the material stops behaving like a flexible plastic and starts behaving like a rigid solid.

For common EV cable jackets:

• PVC — glass transition around −20 °C to −40 °C, but PVC gets noticeably stiffer starting around −10 °C (14 °F). By the time you hit −25 °C (−13 °F), a PVC-jacketed cable is essentially rigid until it warms up.
• TPU — glass transition around −50 °C to −60 °C. Stays flexible through nearly any winter condition a North American EV owner will encounter.
• Silicone — glass transition around −60 °C to −100 °C. Overkill for most consumer cables, but standard on Nordic and industrial-grade portable EVSEs.

The insulation around each conductor inside the cable has its own polymer properties, but the outer jacket is what your hands feel and what does the mechanical work of holding the conductor bundle together. When the jacket goes rigid, the whole cable does.

This is the piece that most owners feel but can't explain: it's not "the cold made the cable stiff." It's "the outer jacket dropped below its glass-transition temperature and stopped being an elastomer." Same phenomenon happens to garden hoses, silicone spatulas, and any other consumer polymer product. It's just that with an EV cable, the mechanical consequence at the plug is a lot more expensive.

Why Stiffness Isn't Just Annoying — It's Mechanical Load

Look at a typical cold-weather charging scene from above. Your NEMA 14-50 receptacle is anchored to the wall. Your car's charging inlet is anchored to the car. Between them runs a cable. In summer, that cable drapes — gravity pulls it downward in a natural curve. Whatever weight the cable itself has, it hangs straight down in a manageable arc.

In winter, the same cable can't drape. It's now closer to a rigid pipe. When you plug the connector into the car, the cable holds whatever geometric shape it happened to be in when you unspooled it. If that shape puts the cable at an angle to the receptacle — pulling to the side, or upward, or diagonally — the receptacle body has to resist that force.

Now add a plug-mounted control box. Most portable Level 2 chargers on the North American market — Emporia Pro, Lectron, ChargePoint's portable variant, older Tesla mobile connectors — put a heavy brick directly on or immediately behind the NEMA plug. That mass is always applying downward force on the receptacle. In winter, the stiff cable adds a second vector: a lateral force set by whatever angle the cable froze into.

Both forces act on the same anchor point: the receptacle body. Continuous downward load from the brick, plus intermittent lateral load from the stiff cable, plus the thermal cycling of 40 A continuous current running through it. This is the mechanical environment the plug interface actually operates in.

Tesla owners on TMC have been describing this failure pattern for years. From one owner analyzing his melted 14-50 receptacle: "the meltdown was due to increased resistance brought on by lateral force being applied to the plug, which loosened the contact force of the receptacle contacts, with the plug pulled about 1/8th inch out of the receptacle." That's the biomechanics stated in owner language. The lateral force he named is exactly what a stiff winter cable amplifies.

What Nordic Drivers Figured Out

Norway hit 90% EV market share on new car sales in 2024. Norwegian winters routinely reach −20 °C to −30 °C (−4 °F to −22 °F) in the interior and northern regions. If cable stiffness in cold weather broke portable EVSEs, we'd know — the Norwegian consumer complaint data would be full of it.

What actually happened is that European portable chargers adopted TPU jackets and connector-integrated ICCB designs a decade before the US market did. When you look at portable EVSEs sold in Norway and Sweden, two design choices show up consistently:

• TPU or silicone cable jacket with a rated low-temperature limit that Nordic manufacturers publish (typically −30 °C to −40 °C).
• Electronics integrated into the connector handle at the car end, not in a brick on the wall plug. Some brands use a small mid-cable unit, but the plug-end brick common in the US market is rare on Nordic-sold products.

Neither is a Nordic invention. Both are engineering responses to a real environmental constraint that US regulators haven't specifically written into a Level 2 EVSE spec yet. Below −15 °C, the design choices that let a portable charger survive its warranty period are different from the choices that get it to market cheaply. Nordic drivers just had a decade head start figuring out which choice wins over time.

The Diagnosis — Signs Your Cable+Charger Combo Is Stressing Your Outlet

You almost never get a sudden failure at the plug. You get a slow accumulation of warning signs, usually noticed in winter when the cable stiffness makes the geometry worse:

• The plug doesn't sit flush against the receptacle face. If you can slide a business card between the plug body and the receptacle plastic, the plug is being held at an angle — usually because the stiff cable is pulling it sideways.
• Discoloration around the plug prongs. A pale-brown or yellow tint on the receptacle plastic near the plug slots is polymer degradation from heat concentrated at one contact point. Not reversible.
• The plug body feels warm to the touch after 30 minutes of charging. Warm at the plug is warm at the internal contacts. In practice, anything above ambient by more than 15 °C after 30 minutes of continuous 32-40 A means the contact resistance is elevated.
• Cable memory when you unplug. If the cable holds the shape it was in when you unplugged — arcs, kinks, curls — the polymer jacket is past its transition. That's mechanical evidence, not just aesthetics.
• A slight "give" when you push on the plug. In a properly-seated NEMA 14-50, the plug should feel rigidly locked to the receptacle. If you can wiggle it, the internal contact springs have already lost some of their retention force.

Any one of these is worth noting. Two or more in the same season means the receptacle is on the way out — replace it with an industrial-grade Hubbell HBL9450A or Bryant 9450FR before spring, and if the charger design is what put you here, replace that too.

The Fix — Design Choices That Actually Handle Cold

Two design choices, one you can influence at the charger level, one you can influence at the outlet level.

At the charger level: look for a TPU cable jacket and a connector-integrated ICCB (the electronics live in the car-end connector handle, not in a brick on the wall plug). The TPU jacket buys you flexibility down to at least −40 °C. The car-end weight design means whatever mechanical load the stiff cable transmits, it doesn't have a heavy pendulum pulling on the wall receptacle to amplify it.

At the outlet level: industrial-grade receptacles (Hubbell HBL9450A, Bryant 9450FR, Leviton 279-S00) use brass contacts and screw terminals, which hold their retention force under thermal cycling for decades rather than years. A residential Leviton 14-50 costs $8-15 and is designed for a dryer plug that goes in and stays in. An industrial receptacle costs $45-70 and is designed to survive commercial welder duty. For an EV charging circuit, the industrial part is the correct spec regardless of climate — in cold climates it's the only spec that survives.

Both matter, but if you have to pick one, the charger design matters more. An industrial receptacle paired with a plug-mounted brick charger will still degrade — slower than a residential receptacle would, but degradation continues because the mechanical load remains. A residential receptacle paired with a car-end weight design does far better than either extreme would suggest, because the load geometry never puts the receptacle in a hard place.

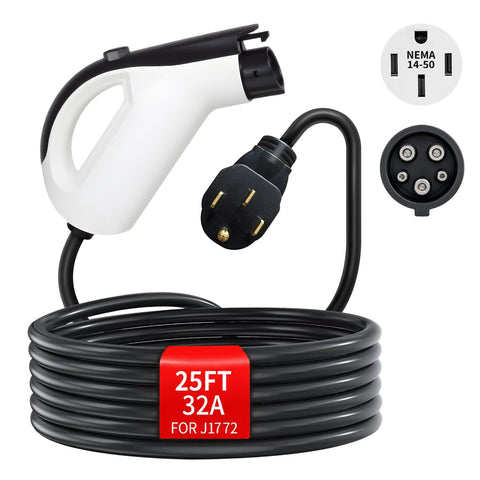

Our Pick — WenStorm Level 2 Portable

For cold-climate EV owners specifically, the WenStorm 32A portable addresses both of the design levers above:

• TPU cable jacket — rated for use in the temperature range Nordic drivers actually see.
• Electronics integrated into the J1772 or NACS connector handle at the car end. When cold makes the cable rigid, the mechanical load transmits into the car's charging inlet (which is designed to hold a connector under load), not into your NEMA 14-50 receptacle.
• 25 ft cable. In cold, you want extra slack — a longer cable gives you geometry options and reduces the odds of any single point taking the full stiffness load.

At 32 A, the charging speed is right-sized for overnight home charging even at low temperatures, when EVs pre-condition their battery and pull more current for a longer window than they do in summer.

Frequently Asked Questions

What's the coldest temperature I can charge my EV at?

For the EV itself, most current-generation batteries can accept AC Level 2 charging down to about −25 °C (−13 °F) before internal battery-management software slows the charge to protect the cells. Below that, expect reduced charging power and longer charge windows. For the charger cable and connector, the limiting factor is usually the polymer jacket — PVC-jacketed cables become impractical below −15 °C, while TPU and silicone jackets remain functional. There's no legal minimum, only a practical one.

Should I bring my cable inside between charges?

If your charger is plug-in portable and your winter conditions routinely drop below −20 °C (−4 °F), yes, storing it indoors between uses meaningfully extends jacket lifespan. A PVC jacket that cycles thousands of times through its glass transition eventually cracks. TPU and silicone jackets are much more tolerant of thermal cycling but still benefit from warm storage. For hardwired chargers or wall-mounted units that stay outside, look for an IP66 or IP67 rating and expect to replace the cable more often than the unit.

Does cable stiffness affect charging speed?

Not directly. Charging speed is set by the circuit rating and the EV's onboard charger. Cable stiffness doesn't slow the current. What stiffness does affect is contact quality at the plug: a stiff cable pulling at an angle can reduce the contact area between the plug prongs and the receptacle terminals, which raises resistance at that interface, which in extreme cases causes the charger to detect elevated temperature at the plug and ramp down charging speed as a safety response. So while stiffness isn't a primary factor, it's a secondary one — through the plug-contact quality path.

What's a good IP rating for a portable EV charger in winter?

IP66 on the connector and IP55 or better on the control unit are typical for reputable portable Level 2 chargers. IP66 handles heavy snow, rain, and light water jets — sufficient for driveway charging in normal winter conditions. IP67 would let you briefly submerge the unit (relevant for garages that flood or for unusually wet spring conditions), but is overkill for most consumer use. What matters more than the raw IP number is that the manufacturer has actually tested for cold operation — a charger rated IP66 but designed for temperate climates will still have polymer components that fail in Nordic conditions.

Are Nordic EV chargers actually better in cold?

The specific portable EVSEs that dominate the Norwegian and Swedish markets tend to use TPU or silicone cable jackets and put the electronics in the connector handle rather than in a plug-end brick. Both are practical responses to a colder operating environment. The US market has been slower to adopt these design choices, partly because US winter conditions are less extreme in the population centers where EV adoption started (California, Florida, Texas), and partly because low upfront cost has been the dominant purchase criterion. This has been changing since 2023 — expect the North American market to converge on Nordic-style designs over the next few product cycles.

---

Below −15 °C, a portable EV charger stops being a consumer electronics product and starts being a mechanical load path. The physics doesn't care about the marketing, and it doesn't care what the summer product review said. What matters at −25 °C is which polymer is in the cable jacket and where the manufacturer put the electronics. Nordic drivers figured this out a decade ago. The rest of us are catching up.
