How to Charge Your EV at Any RV Park Using a TT-30 Outlet
Most EV road trip guides tell you to plan around Superchargers and DC fast chargers. They leave out an option that covers tens of thousands of locations across the US: the humble TT-30 outlet at every RV park and campground in the country.
If you're spending a night at a campground, a state park, or an RV resort, there's almost certainly a TT-30 power pedestal within reach of your car. One adapter in your glove compartment turns every one of those locations into an overnight charging stop — no app, no reservation, no dedicated EVSE required.
This guide covers what a TT-30 outlet is, exactly how fast it charges your EV, and how to plan your road trip around it.
There Are 16,000+ RV Parks in the US — Most Have Your Outlet
The US has over 16,000 RV parks and campgrounds. The overwhelming majority are wired with the same standard power pedestal — a post mounted near each site that provides 30-amp and 50-amp shore power for RVs.
The 30-amp connection on that pedestal is a TT-30 outlet. It's the same at a KOA in Montana, a state park in Florida, a private campground in Vermont. Once you know what it looks like and have the right adapter, every one of those sites becomes a charging stop.
This is the most underused road trip charging strategy for EV owners — especially for Tesla Gen 2 mobile connector owners who already carry their charging hardware in the trunk.

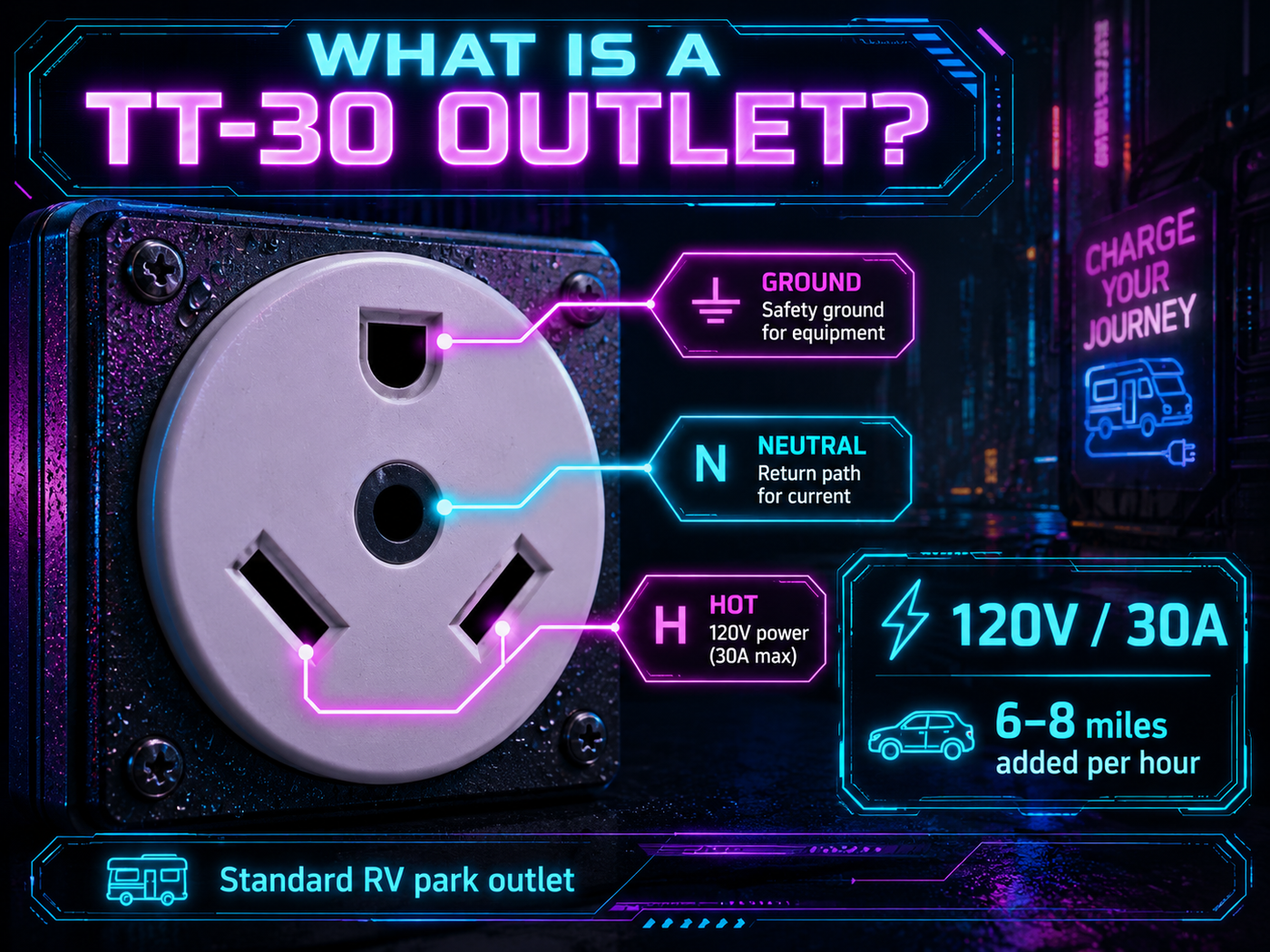

What Is a TT-30 Outlet? (And How to Find It When You Arrive)
TT-30 stands for Travel Trailer 30-amp — it's the industry-standard 30-amp outlet for recreational vehicle hookups in North America.
What it looks like:
- 3 prongs (two angled flat blades + one round ground)
- Roughly the size of a large wall outlet
- Mounted on a grey or brown pedestal post near each campsite
- Usually labeled "30 AMP" on the pedestal panel
How to find it at the campsite:
Look for the power pedestal — a rectangular post, typically 3–4 feet tall, located at the edge or corner of your campsite. The pedestal usually has multiple outlets:
- TT-30 (3-prong, 30A) — this is what you want
- NEMA 14-50 (4-prong, 50A) — ideal if present (faster charging)
- NEMA 5-15 (2-prong, standard household) — Level 1 fallback
Check the pedestal before assuming you only have TT-30 access. Newer campgrounds and RV resorts increasingly include a NEMA 14-50 (50-amp) outlet on the same pedestal — if you have that option, use the WenStorm NEMA 14-50 adapter instead for faster overnight charging. See the Tesla NEMA adapter full guide → for a complete breakdown of every adapter type.
How Fast Does a TT-30 Charge Your EV? (Real Numbers)
The TT-30 operates at 120V / 30A, which allows EV charging at up to 24A (80% of rated capacity per NEC guidelines).
Charging speed: approximately 6–8 miles of range per hour.
That puts it between Level 1 (3–5 mph) and Level 2 (18–35 mph) — not fast for daily driving, but genuinely useful on a road trip when your car is parked overnight anyway. For a full explanation of the difference, see our Level 1 vs Level 2 charging guide →.
| Charging Source | Voltage | Max Draw | Range Per Hour |
|---|---|---|---|
| Standard wall outlet (Level 1) | 120V | 12A | 3–5 mph |
| TT-30 (RV park pedestal) | 120V | 24A | 6–8 mph |
| NEMA 14-50 (50-amp pedestal) | 240V | 32–40A | 28–35 mph |
| Level 2 wall charger | 240V | 40–48A | 35–44 mph |
What 6–8 mph means on a road trip:
Plug in at 9pm. Wake up at 7am. That's 10 hours of charging — adding 60–80 miles of range while you sleep. If you drove 150 miles during the day and arrived at 25% battery, you'll leave at 45–55% with a comfortable buffer for the next leg.
TT-30 won't give you a full battery every morning. It's not designed to. It's designed to give you enough range to reach the next charge point — whether that's another campground, a Supercharger, or your destination.
TT-30 vs Other RV Park Charging Options
| Option | Speed | What You Need | Notes |
|---|---|---|---|
| TT-30 pedestal outlet | 6–8 mph | TT-30 adapter | Available at virtually every RV park |
| NEMA 14-50 pedestal outlet | 28–35 mph | NEMA 14-50 adapter | Present at newer/premium sites |
| Dedicated EVSE at campground | 18–35 mph | EVSE app/card | Rare — fewer than 5% of campgrounds |
| Standard 120V outlet (if available) | 3–5 mph | No adapter needed | Sometimes found at cabin sites |
| No charging | 0 mph | — | Plan your Supercharger stops instead |
The TT-30 is the baseline you can count on. Everything else is a bonus. When you find a NEMA 14-50 pedestal, use it — but don't plan your route assuming it'll be there.
How to Plan Your Road Trip Around TT-30 Charging
TT-30 charging changes your road trip math in a specific way: it rewards longer overnight stays and makes every campground night productive for your battery, but it doesn't work as a quick top-up during a lunch stop.
The overnight model:
Plan each driving day so you arrive at the campground with 20–40% battery remaining. After 8–10 hours on a TT-30, you'll leave with 60–80 more miles added. If each day's drive is under 200 miles, this is often enough to keep you comfortable the entire trip without relying on fast chargers.
| Drive Length | Arrive With | TT-30 Overnight (9 hrs) | Depart With |
|---|---|---|---|
| 100 miles | ~50% | +55–65 miles | ~85–90% |
| 150 miles | ~25% | +55–65 miles | ~60–65% |
| 200 miles | ~10% | +55–65 miles | ~45–55% |
| 250 miles | Empty | Not enough — need fast charger first | — |
Rules for TT-30 trip planning:
- Keep each leg under 180 miles if you're relying on TT-30 as your primary overnight charge.
- Arrive before 10pm to maximize charging hours before your morning departure.
- Identify a DCFC backup within 20 miles of each campground — in case the pedestal is occupied or unavailable.
- Carry a NEMA 14-50 adapter too. Many newer campsites have 50-amp pedestals. If you have both adapters, you can take whichever outlet is free and get double the speed when the 14-50 is available.

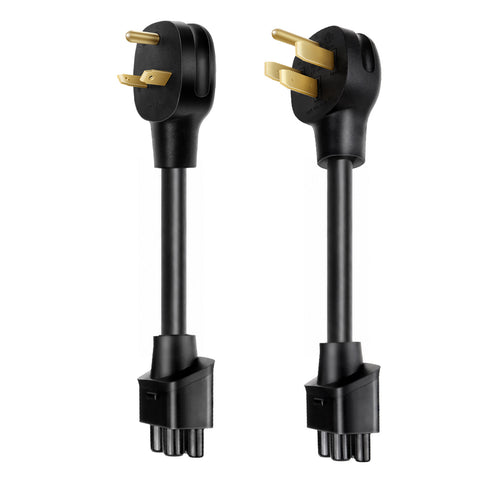

What Gear to Bring (The Complete Road Trip Charging Kit)
Here's the complete road trip charging kit for a Tesla Gen 2 mobile connector owner:
Essential:

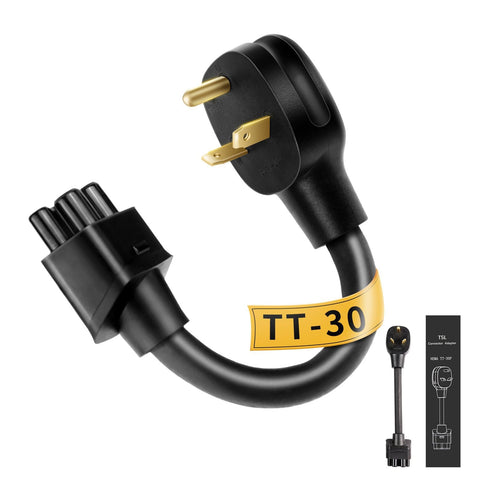

- WenStorm TT-30 Adapter ($69.99) — plugs your Tesla Gen 2 mobile connector into any RV park pedestal. ETL certified, waterproof, built with fireproof materials and corrosion-resistant nickel-plated pins — designed for outdoor use in exactly these conditions. Compact enough to fit in a glove compartment. Every campground in America has this outlet.
Strongly recommended:
- WenStorm NEMA 14-50 Adapter — for when the campsite has a 50-amp pedestal. Charges at 28–35 mph vs 6–8 mph. Takes up the same space as the TT-30 adapter in your bag.
Already in your car:
- Tesla Gen 2 Mobile Connector + cable (standard equipment)
- NEMA 5-15 adapter (Level 1, included with Gen 2 kit) — fallback for cabin-style sites with standard wall outlets only
That's the entire kit. No external charging station needed. The mobile connector handles everything — the adapters just change what outlet it connects to.
Shop the WenStorm TT-30 Tesla Adapter →
For non-Tesla EV owners: the WenStorm Portable Level 2 Charger plugs into NEMA 14-50 outlets but not TT-30. For TT-30 access with a J1772 vehicle, look for a 30A to 14-50 step-down adapter rated for EV loads, or plan your route around the 50-amp pedestals that are increasingly common at newer campgrounds.
Shop All WenStorm Road Trip Charging Gear →
Step-by-Step: How to Charge at an RV Park Tonight
Once you have the adapter, setup is under 60 seconds:
Step 1 — Find the pedestal at your campsite. Look for the grey or brown post at the edge of the site. Confirm the TT-30 slot (3-prong, with two angled flat blades).
Step 2 — Check if a NEMA 14-50 is also present. If the pedestal has a 4-prong, L-shaped outlet (50-amp), use your NEMA 14-50 adapter instead — you'll charge 4x faster overnight.
Step 3 — Plug the WenStorm TT-30 adapter into the pedestal. The adapter slides directly onto the TT-30 outlet. No tools. No force required.
Step 4 — Connect your Tesla Gen 2 mobile connector. Plug the adapter end into your mobile connector's adapter slot, then connect the J1772 end to your car as normal.
Step 5 — Confirm charging on your car's display or app. You should see the charge rate — approximately 24A / 2.9kW at 120V. Set a departure time or charge limit if desired.
Step 6 — Unplug in the morning. Disconnect the car first, then unplug from the pedestal. Coil the cable, stow the adapter in your glove compartment, and drive.
Total setup time: under one minute. Total gear required: one adapter that fits in your jacket pocket.
FAQ
What is a TT-30 outlet at an RV park?
A TT-30 (Travel Trailer 30-amp) is the standard 120V/30A electrical outlet on the power pedestal at most RV parks and campgrounds in North America. It has three prongs — two angled flat blades and one round ground. For EV charging, a TT-30 delivers approximately 6–8 miles of range per hour, making it useful for overnight charging during road trips.
Can I charge my EV at an RV park?
Yes. Most RV parks have TT-30 outlets on every campsite pedestal. Tesla Gen 2 mobile connector owners can plug in using the WenStorm TT-30 adapter ($69.99, fits in a glove compartment) and charge at approximately 24A / 6–8 mph overnight. Some newer campgrounds also have NEMA 14-50 (50-amp) outlets that charge 4x faster.
How fast does a TT-30 charge an EV?
A TT-30 outlet charges at 120V / up to 24A (80% of the 30A circuit rating), adding approximately 6–8 miles of range per hour. In 9–10 hours overnight, that's 55–70 miles of range recovered. Slower than Level 2, but practical for multi-day road trips where the car is parked overnight at a campground.
Do I need a special adapter for RV park EV charging?
For Tesla Gen 2 mobile connector owners: yes, a TT-30 adapter (like the WenStorm TT-30 adapter, $69.99) is all you need. It plugs into the mobile connector's adapter slot and connects to the campsite pedestal. No installation, no electrician, no separate charging equipment needed — just the adapter and the cable you already own.
Is TT-30 charging safe for daily use?
TT-30 charging is safe for EV use when using a certified adapter rated for the load. The WenStorm TT-30 adapter is ETL certified, waterproof, and built with fireproof materials and corrosion-resistant nickel-plated pins — specifically designed for outdoor use at RV parks and campgrounds. It limits charging to 24A, within the 30A circuit's safe operating range (80% per NEC guidelines).
Should I bring a TT-30 adapter or a NEMA 14-50 adapter on a road trip?
Ideally both. The TT-30 is present at virtually every RV park site — it's your guaranteed fallback. A NEMA 14-50 adapter gives you 4x faster charging when the 50-amp pedestal is available. Both adapters together weigh less than a pound and take up minimal space. For Tesla Gen 2 owners, this two-adapter kit covers essentially every campground and RV resort charging scenario in North America.
Pack the Adapter. Sleep at the Campground. Wake Up Charged.
A TT-30 adapter is one of the most useful pieces of gear a road-tripping EV owner can carry. At $69.99, it pays for itself the first time you skip a $20 public charging session — and it unlocks 16,000+ campgrounds across the US as overnight charging stops.
You don't need a dedicated EVSE. You don't need an app. You don't need to hope the campground installed EV charging. You need the outlet that's already there — and the right adapter to connect to it.
